JGX-1598D-657B Multi-Axis Wire Rope Vibration Isolator for Harsh Environment Certified Equipment Protection

JGX-1598D-657B Multi-Axis Wire Rope Vibration Isolator

Most vibration isolation products are designed and rated for a single primary loading direction. The real world does not work that way. A generator skid on an offshore platform sees roll from wave motion; a crusher motor in a desert mine experiences simultaneous vertical shock from ore impact and lateral kick from belt-drive torque reaction; a fan coil unit on a chemical plant mezzanine endures both structural-borne floor vibration and wind-induced sway. Installing separate isolators for each axis is costly, space-inefficient, and introduces conflicting stiffness paths.

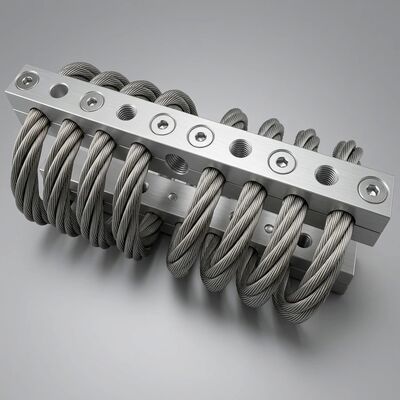

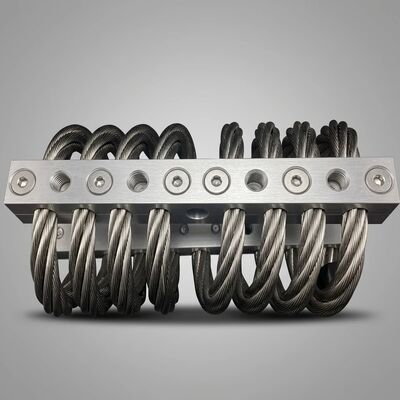

The JGX-1598D-657B addresses this with a single symmetrical 8-coil wire rope helix that functions as a multi-axis shock absorption element: compression, shear, and roll loads are handled concurrently by the same physical structure. No auxiliary dampers. No multi-stage mounting frames. One unit, three axes, continuous protection.

How Multi-Axis Isolation Works in a Single Helix

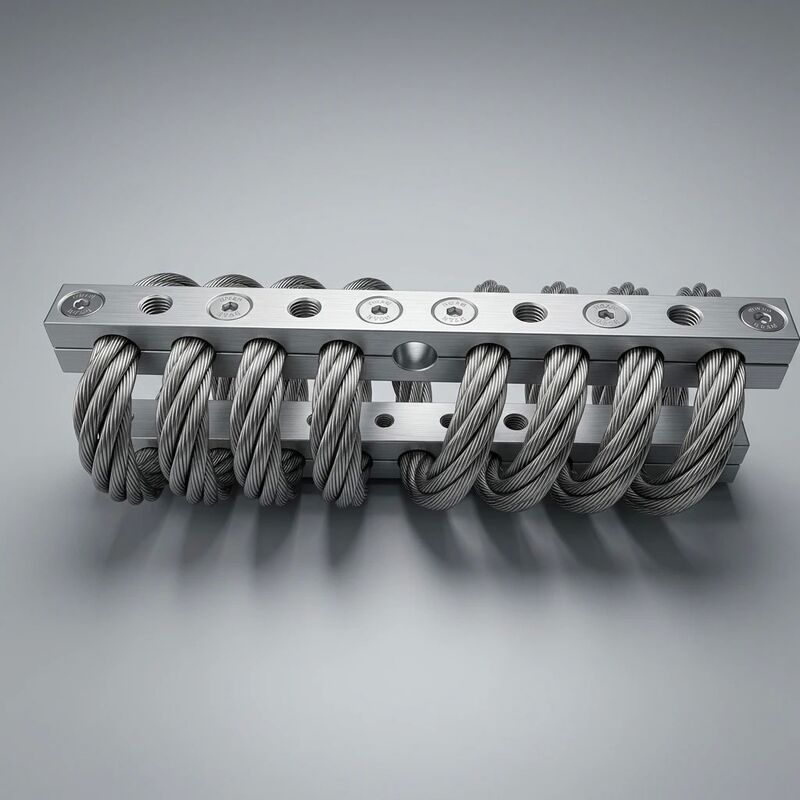

The secret lies in the helical wire rope geometry. When a coil spring compresses, it responds only to axial load. A torsion bar responds only to rotational input. A wire rope helix, however, undergoes a coupled deformation mode: compression induces both axial shortening and a slight twist of the individual rope strands; shear causes bending of the helix loop combined with inter-strand slip; roll loads distribute asymmetrically across the loop segment, engaging some strands in tension while others go into compression. This coupled mechanical behavior means a single JGX-1598D-657B unit dissipates energy from vibration inputs arriving from any direction—not with three separate mechanisms, but with one holistic structural response.

For the design engineer, this simplifies the mounting system architecture. Where a traditional approach might specify four vertical isolators plus two lateral snubbers plus a torque arm bracket (seven components), the same equipment can often be protected with four JGX-1598D-657B units in a standard rectangular arrangement, each absorbing its proportionate share of vibration energy along all three axes simultaneously.

Harsh Environment Certification: What It Means and How It Is Verified

The designation harsh environment certified is backed by a documented test regime, not subjective judgment. The JGX-1598D-657B has been subjected to the following environmental endurance evaluations:

These tests confirm that the JGX-1598D-657B maintains its rated damping performance, structural integrity, and corrosion resistance after prolonged exposure to conditions that would embrittle rubber mounts within weeks and pit uncoated carbon steel within days.

Material Selection for Corrosive Atmospheres

Every material in the JGX-1598D-657B is chosen for galvanic compatibility in chloride-rich environments. The AISI 316L wire rope contains 2–3% molybdenum, which provides pitting resistance far superior to standard 304-grade stainless in the presence of chlorides. The 6061-T6 aluminum clamps receive a 25 μm hard anodizing layer that creates an electrically insulating aluminum oxide barrier, preventing galvanic coupling between the stainless rope and the aluminum body even when the assembly is continuously wetted with salt spray. Electropolishing of the wire rope removes surface iron contaminants introduced during wire drawing and stranding, further enhancing passive layer stability. The net result is an isolator that can be bolted onto an unenclosed equipment skid on an open deck and operate for years without corrosion-related degradation.

Full Technical Specifications

Field Deployment Scenarios

• Offshore Oil & Gas Platforms: Isolates process pump skids, compressor packages, and emergency generator sets on open-deck installations where continuous salt-water spray, high humidity, and 24/7 unmanned operation make maintenance access impractical. The IP67-equivalent construction prevents chloride ingress into the strand bundle, eliminating the hidden corrosion that plagues conventional mounts in marine atmospheres.
• Desert & Arid Mining Operations: Protects crusher drive motors, vibrating screen frames, and conveyor head-pulley bearing housings from combined shock and fine-abrasive dust ingress. The anodized surface resists sand erosion, and the absence of grease fittings means no lubricant contaminated with silica particles.
• Marine Vessel Engine Rooms: Dampens main propulsion engine and gearbox vibration on crew transfer vessels, pilot boats, and coastal cargo ships. The all-metal design meets fire-safety requirements for machinery spaces where combustible elastomeric materials are restricted, and the salt-spray endurance ensures survival in bilge-area humidity. (Compliant with IMO FTP Code for marine equipment.)
• Geothermal & Thermal Power Stations: Isolates steam turbine lube-oil skids, boiler feed pumps, and cooling-water circulation pumps where ambient temperatures near hot pipework exceed the 80°C degradation threshold of rubber isolators. The JGX-1598D-657B operates continuously at 180°C with no loss of mechanical properties.
• Heavy Industrial Process Plants: Serves chemical reactor agitator drives, centrifuge baskets, and hammer-mill frames subject to aggressive chemical fumes (HCl, SO₂, ammonia) where metallic isolation is the only viable option for long-term reliability.
• Remote Telecom & Radar Installations: Isolates backup generator skids and equipment shelter HVAC units at unmanned hilltop and coastal sites with limited maintenance access windows, where component replacement logistics costs dwarf the unit price of each mount.

Selection & Sizing Methodology

Correct sizing of the JGX-1598D-657B requires knowledge of the supported equipment mass, the center-of-gravity location relative to the mounting plane, and the dominant vibration excitation frequencies. As a general guideline, the natural frequency of the isolator under the applied static load should be less than 1/√2 (approximately 0.707) times the lowest excitation frequency to achieve effective isolation. For a 1,500 RPM (25 Hz) diesel generator, selecting a mount configuration yielding a natural frequency of 8–12 Hz places the system well within the isolation region for the primary excitation while avoiding resonance during startup ramp-through. WNRLN application engineers provide complimentary sizing assistance, including load-distribution calculations and multi-point mounting layout recommendations, with every inquiry.

Traceability & Documentation

Each JGX-1598D-657B carries a unique laser-etched serial number on the clamp body. The digital quality dossier—including the 316L heat certificate, 6061-T6 billet certificate, anodizing batch log, load-deflection test curve, and final inspection report—is archived and retrievable by serial number. This documentation package supports regulatory compliance audits, insurance inspections, and equipment recertification programs without requiring destructive sampling or field teardown.
