JGX-0480D-75A Wire Rope Vibration Isolator 100% Metal Construction Zero Aging Simultaneous Multi-Axis Isolation

JGX-0480D-75A Wire Rope Vibration Isolator – 100% Metal Construction with Zero Aging Degradation

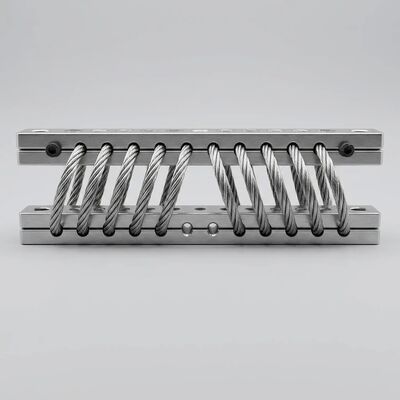

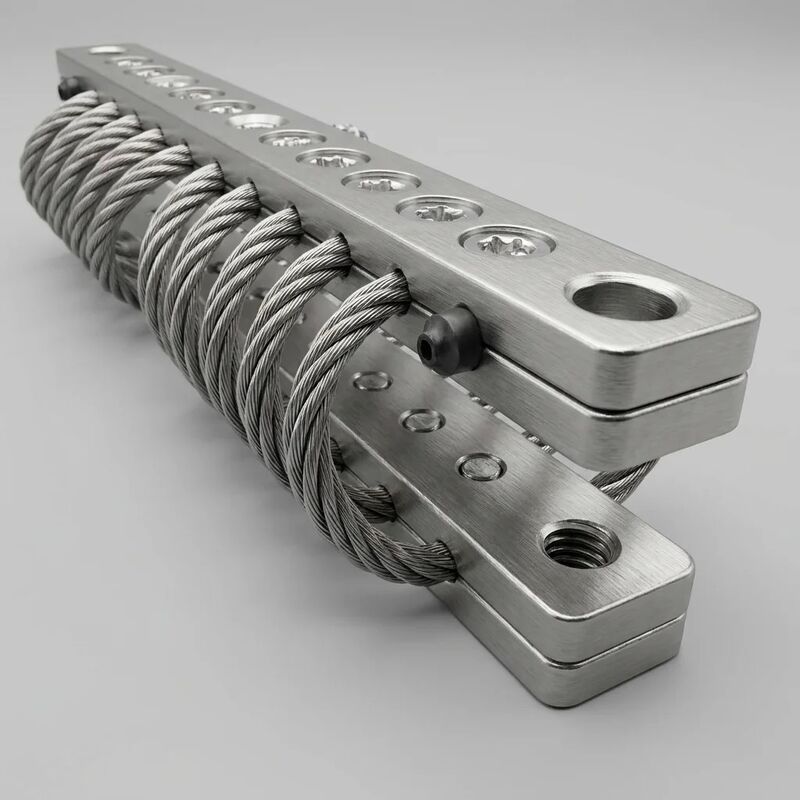

The JGX-0480D-75A Wire Rope Vibration Isolator is engineered around a fundamental design principle: eliminate every component that can age, degrade, or drift over time. Unlike conventional vibration isolators that incorporate rubber, polyurethane, silicone, or fluid-filled elements, this isolator uses 100% metal construction throughout—Stainless Steel 304 wire rope with 7×19 IWRC construction, SS304 retaining bars, and hydraulically-crimped aluminum alloy clamps. The result is an isolation solution that delivers identical vibration control characteristics on day one and day ten thousand, with zero performance drift attributable to material aging.

100% Metal Construction: The Zero-Aging Advantage

• No Elastomer Degradation Mechanisms: Rubber and polyurethane mounts inevitably suffer ozone cracking, UV embrittlement, thermal oxidation, compression set, and plasticizer migration. The JGX-0480D-75A eliminates all five failure modes by design, achieving a true fit-and-forget installation with no scheduled replacement interval.
• Consistent Stiffness Over Decades: Elastomeric isolators typically exhibit 15–30% stiffness increase over 5 years due to cross-linking and hardening. The all-metal JGX-0480D-75A maintains its load-deflection curve within ±3% tolerance throughout its >10&sup7; cycle design life, verified through accelerated aging correlation studies.
• No Cold Flow or Creep Deformation: Unlike polymer-based mounts that progressively deform under sustained static load, the SS304 wire rope assembly exhibits negligible creep (<0.1 mm permanent set after 1,000 hours at rated compression load), preserving equipment alignment and mounting geometry.

Simultaneous Multi-Axis Isolation

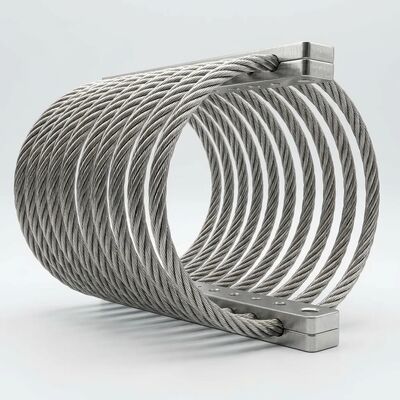

• 8-Coil Helical Configuration: The optimized 8-coil geometry with 4.8 mm wire rope diameter provides balanced stiffness in all six degrees of freedom (3 translational + 3 rotational), enabling a single isolator model to handle complex multi-directional vibration inputs without requiring separate axial and lateral mounts.
• Progressive Load-Deflection Response: Each coil contributes independently to the overall force-displacement characteristic. Under small-amplitude vibration, the coils respond with low dynamic stiffness for excellent isolation. Under shock loading, the inter-wire friction and geometric stiffening combine to deliver progressive energy absorption with no bottoming or hard stops.

Non-Linear Smoothing & Shock Attenuation

• Amplitude-Dependent Damping: The Coulomb friction mechanism inherent in the 7×19 stranded wire rope generates damping proportional to displacement amplitude. Small-amplitude continuous vibration sees low damping (preserving isolation efficiency above 90%), while large-amplitude shock events activate high damping (rapid energy dissipation, preventing resonant amplification).
• Soft-to-Hard Stiffness Transition: The helical geometry provides a non-linear stiffness curve that is intentionally soft in the normal operating range and progressively stiffens beyond 70% of rated deflection. This characteristic prevents the sudden stiffness increase (hardening spring effect) that can cause frequency shift and loss of isolation in linear spring mounts.

Technical Specifications

Industrial Applications

• Heavy Industrial Compressor Packages: Isolates large reciprocating and centrifugal compressor skids (50–500 kW) in petrochemical, natural gas processing, and air separation plants where mounting replacement access is difficult and costly.
• Power Generation Equipment: Provides lifetime vibration isolation for diesel and gas engine generator sets from 50 kVA to 1,000 kVA, protecting radiator assemblies, alternator bearings, and control systems from engine-induced vibration fatigue.
• Marine Propulsion Auxiliary Systems: Isolates pump sets, heat exchangers, fuel separators, and compressor units in engine rooms where salt-laden humidity rapidly destroys conventional elastomeric mounts—the all-metal design provides inherent corrosion immunity.
• Mining Conveyor Drive Stations: Handles the combination of continuous belt vibration and intermittent shock loads from material impact at transfer points, maintaining drive alignment in remote operations with minimal maintenance access.
• Steel Mill & Heavy Forging Equipment: Protects hydraulic power units, electrical control cabinets, and instrumentation panels adjacent to forging hammers, rolling mills, and electric arc furnaces where shock magnitudes exceed 10 g.

ECER Manufacturing Advantage: Every JGX-0480D-75A is produced under ISO 9001:2015 certified processes with individual load-deflection curve verification. Our engineering team provides complimentary modal analysis and transmissibility prediction for your specific equipment parameters. Contact us today for technical datasheets, 3D STEP models, or OEM volume pricing.
