Place of Origin:
China
Hàng hiệu:
Hoan
Chứng nhận:
ISO9001:2015
Model Number:
JGX-0956A-72A
JGX-0956A Series

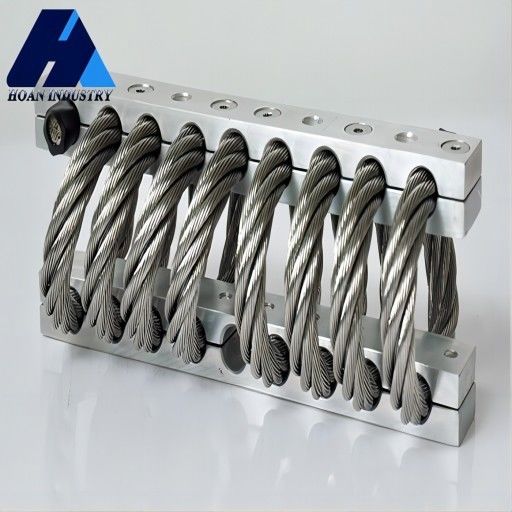

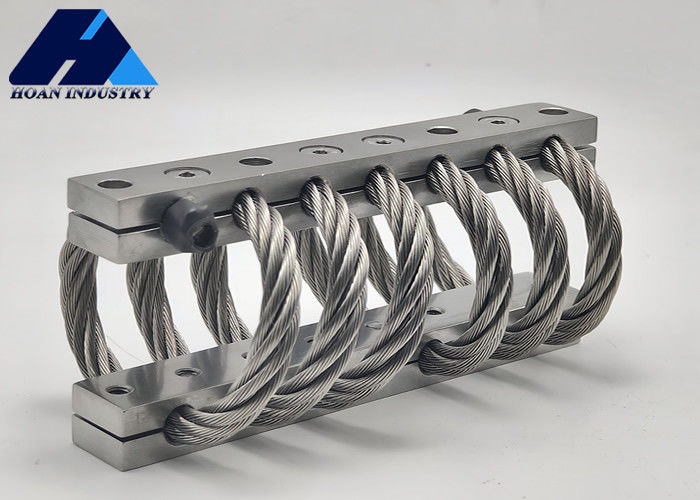

The wire rope isolator JGX-0956 series, recognized as an industry benchmark in vibration isolation, has gained widespread acclaim for its outstanding performance. Taking the model JGX-0956A-72A as an example, it employs 304 or 316 stainless steel wire ropes tightly wound and fixed between upper and lower clamping plates, ensuring a robust and reliable structure. With a maximum static load capacity of 72kg, this model demonstrates exceptional load-bearing performance, effortlessly meeting the weight requirements of various equipment.
In terms of material selection, this series of isolators utilizes high-quality materials treated with specialized processes, endowing them with excellent corrosion resistance, impact resistance, and tolerance to extreme temperatures. Whether in scorching industrial workshops, freezing outdoor environments, or humid, salt-laden marine conditions, they maintain stable performance and operate efficiently over the long term.
Static-Load Curve
| No. | Model |
Max Static Load (KG) |
Max Deflection (mm) |
KV(Vibration) (KN/m) |
Ks(Shock) (KN/m) |
| 1 | JGX-0956A-110A | 110 | 34.0 | 275 | 135 |
| 2 | JGX-0956A-104A | 104 | 37.1 | 240 | 114 |
| 3 | JGX-0956A-80A | 80 | 40.1 | 180 | 84 |
| 4 | JGX-0956A-75A | 75 | 44.7 | 154 | 68 |
| 5 | JGX-0956A-72A | 72 | 49.8 | 137 | 60 |
| 6 | JGX-0956A-40A | 40 | 66.0 | 65 | 25 |
| 7 | JGX-0956A-32A | 32 | 68.1 | 51 | 19 |
| No. | Model |
Max Static Load (KG) |
Max Deflection (mm) |
KV(Vibration) (KN/m) |
Ks(Shock) (KN/m) |
| 1 | JGX-0956A-110A | 90.8 | 47.8 | 177 | 77 |
| 2 | JGX-0956A-104A | 84.0 | 51.8 | 156 | 67 |
| 3 | JGX-0956A-80A | 68.1 | 55.9 | 120 | 49 |
| 4 | JGX-0956A-75A | 63.6 | 63.0 | 103 | 40 |
| 5 | JGX-0956A-72A | 61.3 | 71.1 | 92 | 35 |
| 6 | JGX-0956A-40A | 34.8 | 91.9 | 44 | 16 |
| 7 | JGX-0956A-32A | 28.6 | 95.0 | 36 | 12 |
| No. | Model |
Max Static Load (KG) |
Max Deflection (mm) |
KV(Vibration) (KN/m) |
Ks(Shock) (KN/m) |
| 1 | JGX-0956A-110A | 70.3 | 36.1 | 98 | 98 |
| 2 | JGX-0956A-104A | 65.8 | 39.1 | 84 | 84 |
| 3 | JGX-0956A-80A | 49.9 | 42.2 | 58 | 58 |
| 4 | JGX-0956A-75A | 47.7 | 47.2 | 49 | 49 |
| 5 | JGX-0956A-72A | 45.4 | 52.8 | 44 | 44 |
| 6 | JGX-0956A-40A | 20.4 | 68.1 | 20 | 20 |
| 7 | JGX-0956A-32A | 15.9 | 71.1 | 15 | 15 |
Application Scenarios
1.In the marine industry,they are used for vibration isolation of engines and pump sets.
2.For precision instruments like lithography machines and testing equipment, they provide anti-vibration protection.
3.They also apply to vibration control of industrial machinery, rail transit vehicles, and building structure seismic resistance, effectively isolating shocks and vibrations in complex environments.
