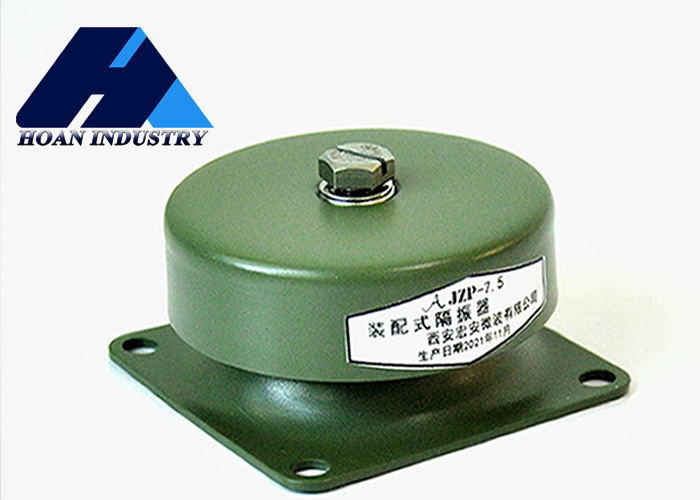

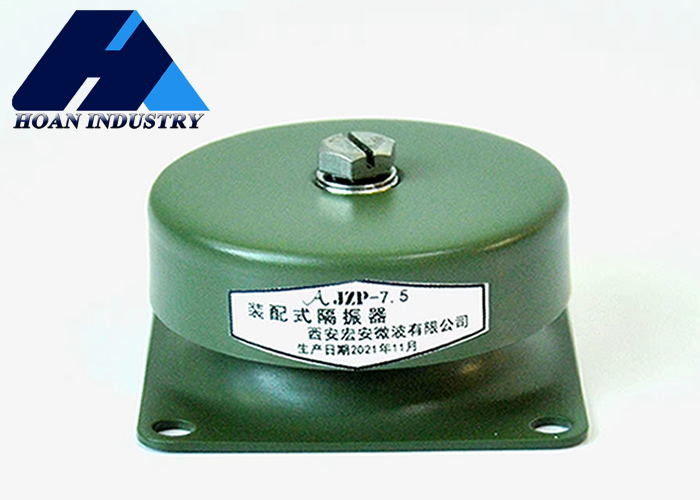

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

Temperature Resistance Rubber Shock Absorber

50mm Width Vibration Isolator

30 Hz Resonance Frequency Friction Damping Vibration Isolator

Nguồn gốc:

Trung Quốc

Hàng hiệu:

Hoan

Số mô hình:

JZP-9.0-SC-SC1

Liên hệ với chúng tôi
Yêu cầu Đặt giá
Chi tiết sản phẩm
Điện trở nhiệt độ:
Đến 100 độ C
Chiều rộng:
50mm
Vật liệu:
Cao su
Kháng UV:
Mạnh
Tần số cộng hưởng:
30Hz
Khả năng tải:
100-5000 pound
Định hướng gắn kết:
Thẳng đứng
Đóng gói:
Đóng gói tiêu chuẩn
Độ cứng trục:
50n/mm
Tần số rung:
5Hz đến 100Hz
Chất lượng:
Lớp công nghiệp
Loại tiếp thị:
Sản phẩm nóng 2024
Cách sử dụng:
Máy móc công nghiệp
Làm nổi bật:

Temperature Resistance Rubber Shock Absorber

,

50mm Width Vibration Isolator

,

30 Hz Resonance Frequency Friction Damping Vibration Isolator

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
4
Điều khoản thanh toán
L/C, D/A, D/P, T/T, Liên minh phương Tây, Moneygram
Mô tả sản phẩm
JZP-9.0-SC-SC1 Rubber Shock Absorber - Essential Component for Industry 4.0 Smart Production Lines
JZP-SC-SC1 Series: The Efficiency Multiplier for Smart Manufacturing
Under Industry 4.0 frameworks, production line intelligence and high throughput demand unprecedented equipment stability. The JZP-SC-SC1 series friction damping vibration isolators from Xi'an Hoan Microwave serve as critical "efficiency multipliers" for smart production lines.
Key Performance Advantages:
  • Effectively mitigates transient impacts and wide-frequency vibrations from industrial robots and AGV systems
  • Maintains positioning accuracy for precision assembly robots
  • Ensures clear imaging for visual inspection systems
  • Reduces quality issues like connector insertion failures
  • High damping characteristics enable rapid equipment stabilization between movements
  • Robust, maintenance-free design meets industrial reliability requirements
By implementing JZP-SC-SC1 isolators, manufacturers achieve not just vibration control but complete production process optimization - enabling truly efficient, high-reliability "dark factory" operations.
Dimension Specifications
JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery 0
Model D (mm) H±1 (mm) h (mm) A±0.2 (mm) B (mm) d d2 R b (mm)
JZP-SC-SC1 60 36 24.5 50 60 M5 ∅5.5 5 28
Technical Parameters
Model Nominal Load (KG) Static Displacement (mm) Working Temperature (℃) Resonance Frequency (Hz) Impact Test Limited Period
JMZ-3.2-SC-SC1 3.2 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JMZ-4.2-SC-SC1 4.2 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JMZ-5.2-SC-SC1 5.2 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JMZ-6.0-SC-SC1 6.0 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JMZ-7.0-SC-SC1 7.0 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JZP-7.5-SC-SC1 7.5 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JZP-9.0-SC-SC1 9.0 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JZP-10.5-SC-SC1 10.5 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JZP-13.5-SC-SC1 13.5 ≤0.3 -45~+65 41.5±5 100g 12 times 8
JZP-15-SC-SC1 15 ≤0.3 -45~+65 41.5±5 100g 12 times 8

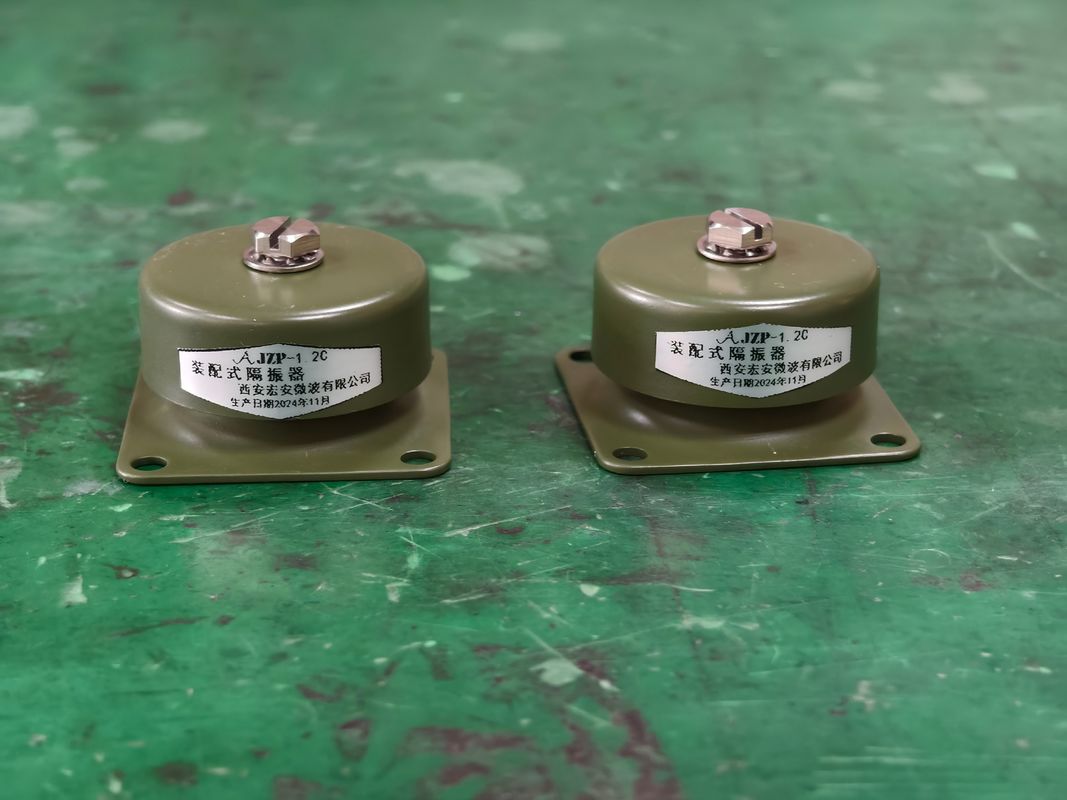

Customer Implementation
JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery 1
