Nguồn gốc:
Trung Quốc
Hàng hiệu:
Hoan
Số mô hình:
JZP-4.2
| Attribute | Value |
|---|---|
| Weather Resistance | Excellent |
| Damping Ratio | 0.5 |
| Shape | Cylindrical |
| Showroom Location | None |
| Installation Type | Horizontal/Vertical |
| Mounting Type | Threaded |
| Height | 29mm |
| Warranty | 1 Year |
| Characteristics | Heat resistant, tear resistant |
| Maximum Deflection | 1 inch |
| Application | Automotive, industrial, machinery |
| Isolation Efficiency | 90% |

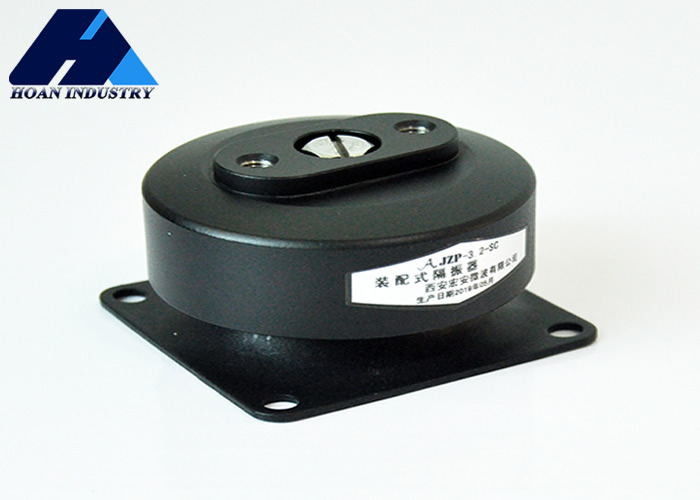

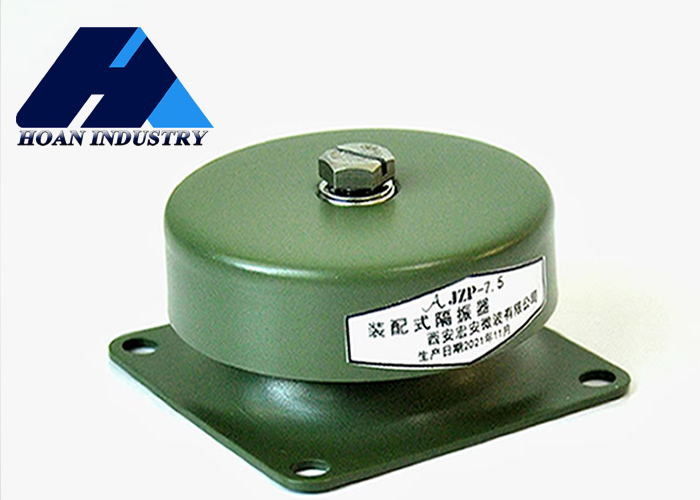

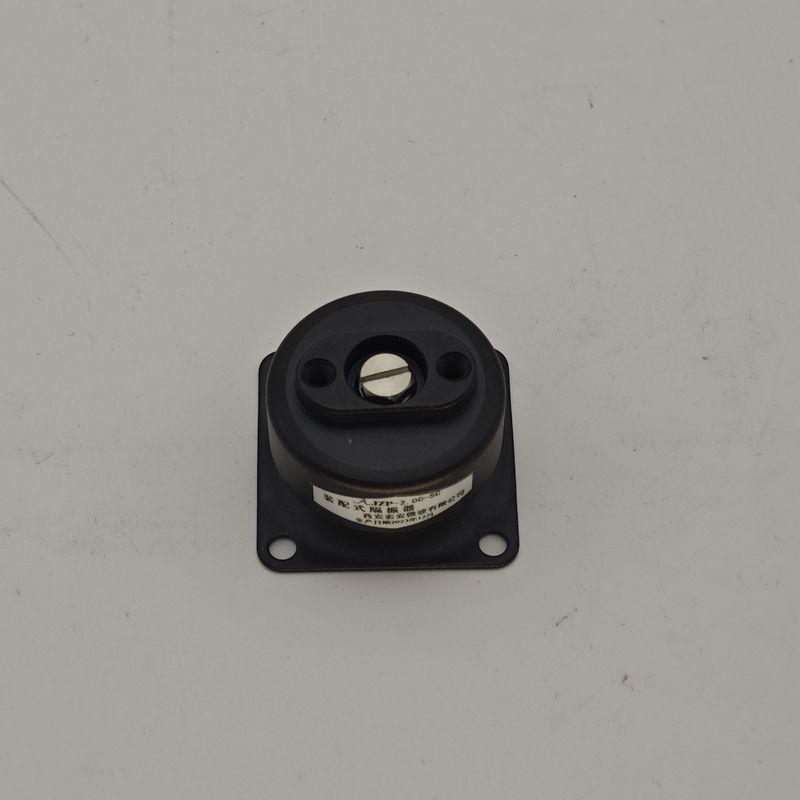

In the world of vibrations where frequencies vary widely, the JZP rubber damping isolator stands out as a reliable partner for numerous devices, thanks to its excellent broad frequency adaptability.
It boasts an extremely wide operating frequency range, effectively exerting vibration isolation effects from low frequencies of a few hertz to high frequencies of hundreds of hertz. This is attributed to its advanced material selection and structural design. The properties of the rubber material have been meticulously adjusted to maintain good damping performance across different frequencies. Structurally, the coordinated operation of various components enables the isolator to absorb energy through large deformation at low frequencies and respond quickly to suppress vibration transmission at high frequencies.
In practical application scenarios, this broad frequency adaptability offers significant advantages. In aviation communication equipment, where low-frequency vibrations from aircraft engines and high-frequency vibrations caused by high-altitude air currents coexist, the JZP isolator can handle both simultaneously, ensuring stable signals of communication devices. In postal and telecommunications base station equipment, whether it is low-frequency vibrations caused by nearby vehicle traffic or high-frequency vibrations generated by the equipment's own operation, it can effectively isolate them, ensuring the stable operation of base station equipment and smooth communication.
| Model | D | H | h | A | B | d1 | MG | R |
|---|---|---|---|---|---|---|---|---|
| JZP | 58 | 29 | 17 | 50 | 60 | ∅5.5 | M6 | 5 |
| Model | Pz Nominal Load (KG) | Deflection Displacement (mm) | Resonant Frequency (Hz) | Working Temperature (℃) | Shock (Ks) | Peak Response G |
|---|---|---|---|---|---|---|
| JZP-2.5 | 2.5 | ≤0.3 | 35±3 | -45～+65 | 100g/6ms | ≤3.6km/s² |
| JZP-3.2 | 3.2 | Same as above | ||||
| JZP-4.2 | 4.2 | Same as above | ||||
| JZP-5.2 | 5.2 | Same as above | ||||
| JZP-6.0 | 6.0 | Same as above | ||||
| JZP-7.0 | 7.0 | Same as above | ||||
| JZP-7.5 | 7.5 | Same as above | ||||
| JZP-8.5 | 8.5 | Same as above | ||||
| JZP-10.5 | 10.5 | Same as above | ||||
| JZP-13.5 | 13.5 | Same as above | ||||
| JZP-15 | 15 | Same as above | ||||
